    Commercial Outdoor Full Color LED Display , P8 Stage LED Screen for Concert

    Ask Lasest Price
    Brand Name : Kailite
    Model Number : P8 Outdoor Fullcolor
    Certification : CE/UL/RoHS/ISO9001
    Price : Negotiation
    Supply Ability : 1000SQM/Month
    Delivery Time : 15days after payment
    • Product Details
    • Company Profile

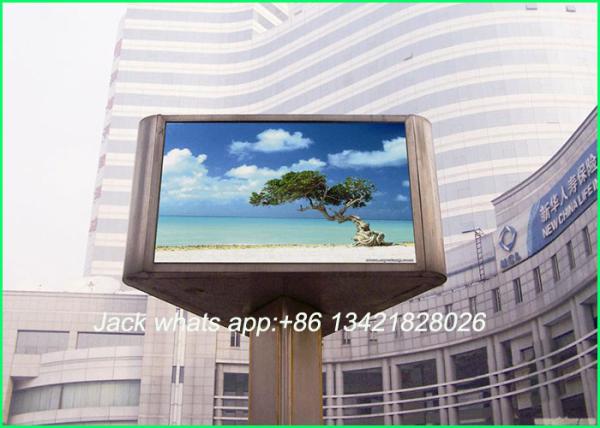

    Commercial Outdoor Full Color LED Display , P8 Stage LED Screen for Concert


    Commercial Outdoor Full Color LED Display , P8 Stage LED Screen for Concert


    Outdoor SMD Fixed box LED Display:

    1. with multi- functional card, it can turn on and turn off the screen by timing or manually at any time.

    2. with sensor card, it can adjust screen brightness automatically according to the

    changing light between day and night which can save energy to reduce your operating cost greatly.

    In addition, it can prolong the lifespan of the LED Display.

    3. High refresh rate and high gray make the picture vivid which meets the demand of

    high visual quality of commercial usage.


    Outdoor LED Display applications:

    --- Outdoor advertising, digital billboards, advertising in big companies


    --- Sports halls, fields, playgrounds.


    --- Airports, bus stations and railway passenger terminals.


    --- Facades of shopping malls, department stores, banks and car dealerships.


    --- Architecture and social projects, information systems in cities.


    --- Show-business, concerts, festivals, motor shows and other public events.

    1Pixel Pitch8mm
    2Density per sqm15625 pixel
    3Pixel configuration1R1G1B
    4LED packagesmd
    5Module resolution32 dots*16 dots
    6Module size256mm*128mm
    7Whiteness brightness≥5000nits
    8Grey Scale/ColorDisplay colors≥16.7m
    9Optimum Viewing Distance10m
    10Driving method1/4 Scan ,Constant Current
    11View Angle(H) 140°(V)/ 120°
    12Frame frequency60 Hz
    13Refresh Rate400 Hz
    14Max power600W/sqm
    15Average power350W/sqm
    16Protection classificationIP65 front/IP54 rear
    17Cabinet Weight55 Kg
    18Install modeWall mount, hung and stand structure
    19Cabinet MaterialIron/Aluminum
    20Working voltageAC 110/220v
    21Control methodSynchronization or Asynchronization
    22Malfunction dot rateLess than 0.0001
    23Working temperature-20~60°C
    24Working Humidity10%-95%
    25Lifetime100,000 hours
    26MTBF≥ 10000 hours
    27Whole display flatnessless than 1mm juncture
    28Transmission distanceLAN cable ≤ 100m,optic fiber transmission,MMF ≤500m, SMF ≤15km

    LED Module and Cabinet Details

    High Refresh Rate

    The Seamless Splice Screen is manufactured as per latest technology-dynamic scanning mode which offers higher brightness and high refresh rate. It features a high refresh rate of over 1000Hz, producing best quality outputs in form of pictures, videos and texts.

    Strict Aging Test

    All products undergo a strict aging test. The 72 hours aging test is conducted without die lamp, dim lamp, color difference and mosaic. The product is introduced in the market only if it passes the aging test, making sure the best quality is ensured for you.

    Trade Terms:
    1). Payment: T/T ,ususally 30% prepayment before production, 70% balance to be paid before delivering,it also change according to total quantity
    2). Production lead time less 20 sqm: 8-15days, more than 50 sqm:30days
    3). Sample can be deliveried within 3days
    4). Shipping port: Shenzhen, Mainland China
    5). Discounts are offered based on order quantities
    6). MOQ:1 sqm/1pcs

    Packaging & Shipping
    Die-cast Aluminum 576mm*576mm Indoor P6 LED Screen/LED Display
    Working Diagram
    Die-cast Aluminum 576mm*576mm Indoor P6 LED Screen/LED Display
    Our service:
    1). Your inquiry related to our products or prices will be replied in 24hrs.
    2). Well-trained and experienced staffs to answer all your enquires in fluent English .
    3). OEM&ODM, any your customized screen we can help you to design and put into product.
    4). Distributer ship are offered for your unique design and some our current models .
    5). Protection of your sales area, ideas of design and all your private information
