    Outdoor Rental RGB LED Screen for City Information Systems 250 * 250mm

    Ask Lasest Price
    Brand Name : Kailite
    Model Number : Outdoor P4.81 Fullcolor
    Certification : CE/UL/RoHS/ISO9001
    Price : Negotiation
    Supply Ability : 1000SQM/Month
    Delivery Time : about 15days after receive the payment
    • Product Details
    • Company Profile

    Outdoor Rental RGB LED Screen for City Information Systems 250 * 250mm

    Outdoor Rental Waterproof P4.81 LED Screen RGB LED Display Screen


    P4.81 outdoor 500*100mm die cast aluminium led display screen
    Item No.P4.81 die cast aluminium led display screen
    ClassificationFull color
    Pixel pitch4.81 mm
    Size of module (mm*mm)250*250 mm
    Pixel density43264 dots/m2
    Pixel composition1RGB
    LED encapsulationSMD 2727
    Resolution of module52*52
    Best viewing distance4~30m
    Best viewing angle (Horizontal/Vertical)160°/140°
    Max power consumption850W/m2
    Driving method1/13 Scan
    Refresh rate≥2400HZ
    White balance brightness≥5500cd/m2
    Working voltageAC 220±10% or 110±10%
    ICICN2027/MBI5124+RT681
    Cabinet materialDie cast aluminium
    Cabinet size500*1000mm
    Cabinet weight15.7kg/cabinet
    Non-Flatness<1mm
    Contrast Ratio4000:1
    Blind Spot Rate<0.000001
    Grey scale16 bits per color


    The unique hexagon structure design, flat and firm


    The back of the cabinet modules adopts the hexagon structure design concepts. This kind of aluminum structure ensures the feature of firmness and flatness to the largest degree. The whole screen is of typical feature after being assembled.


    Sunrise P4.81 outdoor/indoor full color display for rent,cabinet Size500*1000*75mm

    HD image brings you more perfect visual experience


    The smallest pixel pitch of this series can be 4.81mm. The image is of very high definition. Even viewing in close range, the image will show no obvious pixel grainy. So it applies to outdoor installation perfectly.

    Sunrise P4.81 outdoor/indoor full color display for rent,cabinet Size500*1000*75mm

    Fast installation, high precision and less weight


    Fast lock system, 80% higher efficiency in installation. Die-casting aluminum cabinet, high precision and less weight.


    Sunrise P4.81 outdoor/indoor full color display for rent,cabinet Size500*1000*75mm

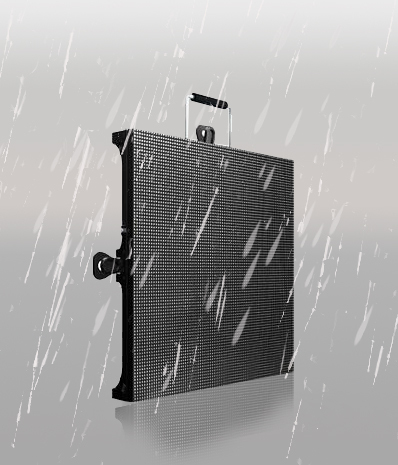

    High IP grade and applicable to rainy weather


    It is shown from the detecting data by third-party professional institutes: the protection level can reach up to IP65, and the product is applicable to any rainy weather, thus can be used in outdoor environments.

    Sunrise P4.81 outdoor/indoor full color display for rent,cabinet Size500*1000*75mm

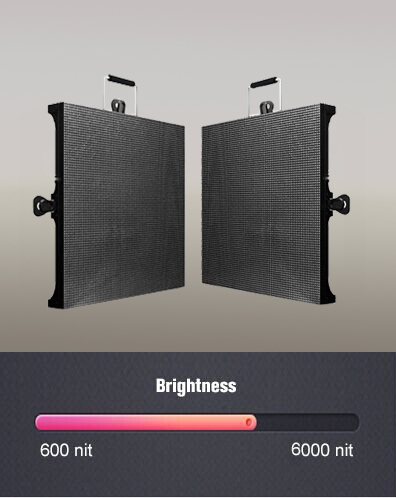

    Brightness are adjustable


    Be able to adjust the screen brightness(600-6000nits) based on ambient light changes, greatly reducing your opearating costs.

    Sunrise P4.81 outdoor/indoor full color display for rent,cabinet Size500*1000*75mm

    Support All Media Format and Display Mode



    Support all media format, also support DVI/HDMI/3G/HD/SD/SDI display mode, applicable for TV program, VCD/DVD and live show. Smart mode available (optional) to monitor the overall working hours and temperature of each cabinet. Hotplug in power supply.

    Sunrise P4.81 outdoor/indoor full color display for rent,cabinet Size500*1000*75mm

    High Refresh Rate

    The Seamless Splice Screen is manufactured as per latest technology-dynamic scanning mode which offers higher brightness and high refresh rate. It features a high refresh rate of over 1000Hz, producing best quality outputs in form of pictures, videos and texts.

    Strict Aging Test

    All products undergo a strict aging test. The 72 hours aging test is conducted without die lamp, dim lamp, color difference and mosaic. The product is introduced in the market only if it passes the aging test, making sure the best quality is ensured for you.

    control system

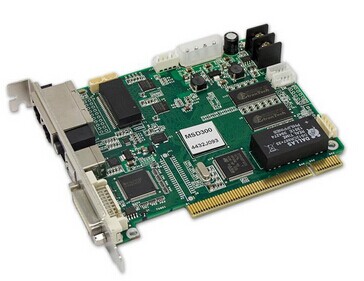

    1. Synchronous System(contact sales if you would like the led display with Linsn or NovaStar or Other brand control system)

    eg:MSD300+MRV300

    2015 professional commercial advertising P8 outdoor SMD led display/led screen for fixed installation with high brightness and g2015 professional commercial advertising P8 outdoor SMD led display/led screen for fixed installation with high brightness and g

    1. Input resolution: 1920×1200,2048×1152,2560×960(width and height can be specially defined by customers)

    2. Capacity: 1.3 million pixels. Supply voltage: 5V

    3. Control method: USB interface.

    Packing & shipping

    6pcs ph4.81mm cabinet into 1pcs air flight case.

    Sunrise P4.81 outdoor/indoor full color display for rent,cabinet Size500*1000*75mm

    Sunrise P4.81 outdoor/indoor full color display for rent,cabinet Size500*1000*75mm


    Service

    Aftersales service

    Two years quality warranty with lifelong led display maintenance.


    Free guarantee repair (including labor and material): free for repair service in quality warranty period and reasonable charge for spare parts and maintaining service after the quality warranty period. Never exempt our responsibilities on product owned defects, modules, power supply, who set led display all repair.


    Spare Parts and free CAD drawing: necessary 2% spare parts are provided together with products to customers.
    Free Technical Training: integrative and normative technology training is available for free to technical personnel from customer, to ensure trainees to be skilled
    in regular operation of hardware and software of the products, and be able to estimate and solve small problems, synchronizatrion assitance for led screen.


    Customer Investigation: our after-sales team will telephone or e-mail user every month in warranty period to follow up the working condition of the products, and to discover problem and solve the problem instantly.


    Software Upgrade: lifelong maintenance of control system, incessant improvement on the system functions and unending software upgrades, now we used Linsn or Nova control system


    Site Instruction Service of installation is available.


    FAQ:
    How to help client choose suitable display ?
    (1) the needs of displaying content
    (2) visible distance,, visual angle confirm
    (3) requirements of cabinet resolution
    (4) requirements of installation environment
    (5) cost control


    What factors should be taken into consideration of screen size design ?
    -There is three important factors in designing screen size:
    (1) need of displaying content
    (2) conditions of field and space
    (3) unit template size (indoor display) or pi, xel size (outdoor display)


    What are the installation requirements of the LED display screen?
    Power supply: the power supply connector must be match for the size of the LED display screen.
    220V electricity power supply, live wire, neutral/null wire and the earth wire.
    380V electricity power supply, three live wires, neutral/null wire and the earth wire.
    The intercept area of the live wire is the same as the null.
