High Resolution P10 Outdoor Led Display Screen For Advertising , Energy Saving

SHENZHEN KAILITE OPTOELECTRONIC TECHNOLOGY CO., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap High Resolution P10 Outdoor Led Display Screen For Advertising , Energy Saving from wholesalers

    Buy cheap High Resolution P10 Outdoor Led Display Screen For Advertising , Energy Saving from wholesalers
    • Buy cheap High Resolution P10 Outdoor Led Display Screen For Advertising , Energy Saving from wholesalers
    • Buy cheap High Resolution P10 Outdoor Led Display Screen For Advertising , Energy Saving from wholesalers

    High Resolution P10 Outdoor Led Display Screen For Advertising , Energy Saving

    Ask Lasest Price
    Brand Name : Kailite
    Model Number : Outdoor SMD P10
    Certification : CE/UL/RoHS/ISO9001
    Price : Negotiation
    Supply Ability : 1000SQM/Month
    Delivery Time : 15days after receive the deposit
    • Product Details
    • Company Profile

    High Resolution P10 Outdoor Led Display Screen For Advertising , Energy Saving

    High Resolution P10 Outdoor Led Display Screen For Advertising , Energy Saving

    1. High brightness, ≥7000CD/m2

    2. IP65 grade, all weather available

    3. High referesh rate, ≥1920Hz

    4. Gray scale ≥65536

    Adopt superior quality SMD 3 in 1 LED lamp, gorgeous color performance.


    High brightness LED lamps with wide viewing range and low driving current, consuming less power.

    ItemPH10
    ColorFull-color real pixels
    Use environmentOutdoor
    Pixel pitch10mm
    Module size320*160mm
    Physical density10000 dots/square meter
    Pixel configuration1R1G1B
    LED chipSMD3535
    Module resolution32*16
    Module power70w
    Recommended viewing distance10-70m
    Best viewing angleH: 120°; V:120°
    Maximum power consumption620w
    Average power consumption250w
    Cabinet sizeW576m×H576mm
    Standard cabinet resolution96*96
    Weight40kg/panel
    Driving method1/4Scan, Constant Current
    Video frame rate≥60 Hz
    Rate refresh≥1200Hz
    White balance brightness≥7000cd
    Operating temperature/Humidity-30℃~+45℃
    Ingress protectionFront:IP 67; Back:IP65
    Input voltage110-220V AC±10%
    Gray scale /ColorDisplay Colors ≥16.7N(Synchronize)
    Brightness controlManual/Automatic
    Input signalRF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc
    Control systemPCTV+DVI video card+control card+fiber
    MBTF>500 hours
    Life time>100,000 Hours
    The rate<0.0002
    LED cabinet

    Smart design LED cabinet

    IP rating: Waterproof level IP65 (front),Waterproof level IP54 (back), fearless of any weather conditions.

    Cooling system: Scientific structure design make sure enough space with high efficient fans increase dissipation capability, ensure the stability and reliability even for long time continuous use, and prolong the lifespan of the led display.

    Packing
    Plywood case packing

    3~4pcs cabinets/box

    With PE foam protection

    Safe & reliable


    Details


    SMD 2727 LED lamp

    1. Pin internal bending, multiple waterproof, high reliability.


    2. White frame, improve brightness;Dumb smooth process, inhibition of reflection.

    LED mudule
    Module size: 160mm (L) * 160mm (H)
    Mask material: PC + glassfiber

    Excellent waterproof and dust effects, using irrigation methods sealing glue.

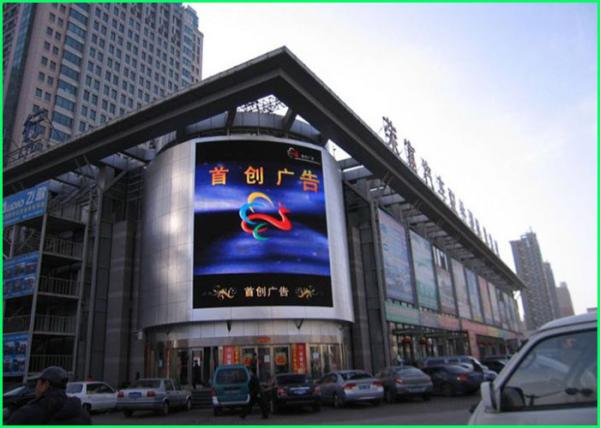

    Application
    Applied to outdoor places such as station,port,airport, shopping mall,hotel,stadium etc.
    It uses as video and information display.

    Operation training


    The training class is mainly to assure customers have good use of products. Which needs both the buyer and seller work along with the contract. Seller is responsible for training buyer how to operate Led Screen software and some basic hardware maintenance knowledge when installation and test being finished well. The detailed training class info as below:


    1) Led Screen basic operation principle


    2) System operation procedure and management


    3) Daily maintenance and safety caution


    4) Display info daily maintenance


    5) Simple software failure treatment


    6) Simple hardware failure treatment


    Quality High Resolution P10 Outdoor Led Display Screen For Advertising , Energy Saving for sale
