P5 / P6 advertisement Outdoor Full Color High definition, High
referesh rate, 7500 Nits LED Display Screen
Application of LED display screen:
LED display,also called led screen, led video wall, or led sign,
with its unique advantages,has gradually replaced the traditional
billboards, light boxes,etc. LED display advertising has become a
new force in the media industry.
Traditional advertising can only show pictures, But LED display/led
video wall/led screen can perfect combine text, pictures, video,
and sound with high resolution,high brightness and full color! LED display Advertising screen can
easily attract the attention of pedestrians,and also are easy to remember,which can generate greater
advertising effectiveness.
Led display screen now are widely applied in media advertising,
transportantion,Security,
Real estate and Stage show background.
Main features:

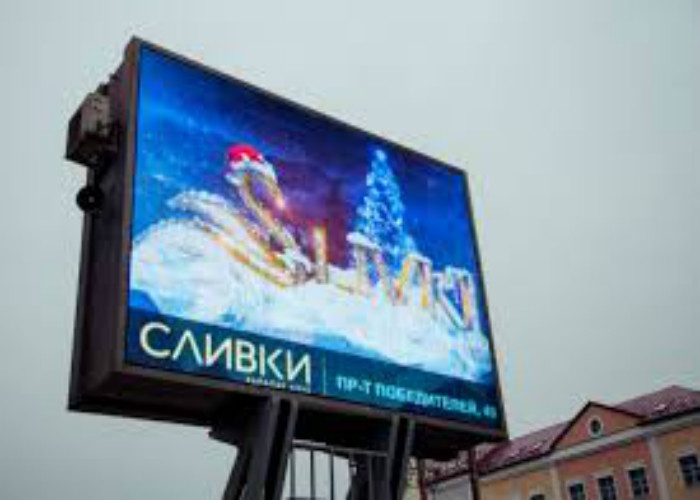

Outdoor Commercial advertising LED display screen, LED display
screen for shopping mall,Stadium perimeter LED display
,bank&stock exchange LED display for rates showing,train & bus
station LED display screen .
- High brightness:6500cd/m2
Automatic or manual adjustment of the brightness of the display.
Supplied by Silan of china & other high strictly selected LED chip
to ensure the long lifetime and high brightness of our LED display
system.
- Clear vivid image quality:
Throughout the show, the picture clear, bright color.
- Installation is simple,easy to use:
Easy and simple installation interface and user friendly software
to ensure that customers use easily.
Specification:
| SMD full color module series |
| PH4 indoor full color | module size:128mm*128mm |
| PH5 indoor full color | module size:160mm*160mm |
| PH6 indoor full color | module size:192mm*96mm |
| PH7.62 indoor full color | module size:244mm*122mm |
| PH10 indoor full color | module size:320mm*160mm |
| SMD indoor LED display specifications |
|
|
| Item | P5 RGB | P6 RGB | P7.62 RGB | P8 RGB | P10 RGB |
| LED encapsulation type | SMD 3 in 1 | SMD 3 in 1 | SMD 3in1 | SMD 3in1 | SMD 3in1 |
| Pixel Pitch(mm) | 5 | 6 | 7.62 | 8 | 10 |
| Module Size(mm) | 160*80 | 192*96 | 244*122 | 256*128 | 320*160 |
| Cabinet Size(mm) | 480*480 | 960*768 | 976*976 | 1024*768 | 960*960 |
| Pixel Density(dots/m2) | 40000 | 27777 | 17222 | 15625 | 10000 |
| Brightness Density(Nit) | >1600 | >1400 | >1200 | >1100 | >1100 |
| Wavelength(R) | 625±5 |
| Wavelength(G) | 522±3 |
| Wavelength(B) | 567±3 |
| Display color | 256*256*256 |
| Display Port | DVI |
| IP Rate | 20 |
| Viewing Angle | 140°(H)/140°(V) |
| Average Power Consumption(W/m2) | 700 | 750 | 220 | 350 | 350 |
| Max Consumption(W/m2) | 1500 | 1100 | 550 | 600 | 600 |
| Drive Mode | 1/8scan | 1/8scan | 1/8scan | 1/8scan | 1/8scan |
| Frame Rate(HZ) | 60 |
| Refresh Rate(HZ) | 400 |
| Working Temperature | —20°C~60°C |
| Cabinet Weight | 45kg/sqm | 45kg/sqm | 45kg/sqm | 45kg/sqm | 45kg/sqm |
Our service:
1.Your inquiry related to our products or prices will be replied in
24hrs.
2.Well-trained and experienced staffs to answer all your enquires
in fluent English .
3.OEM&ODM, any your customized screen we can help you to design
and put into product.
4.Distributoer ship are offered for your unique design and some our
current models .
5.Protection of your sales area, ideas of design and all your
private information
Trade terms:
1. Hardware: LED display and video controlling system
2. Technical material: English version user manual, installation
manual And maintenance manual
3. Service:Provide free technology support by phone and e-mail 7
years guarantee
4. Delivery: Approx 3-12 working days
5. Packing: Anti-shaking wooden package or Air Flight Case.
6. Transportation: By sea or air or Express
