    Commercial Outdoor Full Color LED Display , big LED Screen Video Board P10 SMD3535

    Ask Lasest Price
    Brand Name : Kailite
    Model Number : P10
    Certification : CE,FCC,ROHS ISO9001
    Price : Negotiation
    Payment Terms : T/T, D/A, D/P, L/C, Western Union, MoneyGram
    Supply Ability : 8000sqm per month
    Delivery Time : 5--20 working days
    • Product Details
    • Company Profile

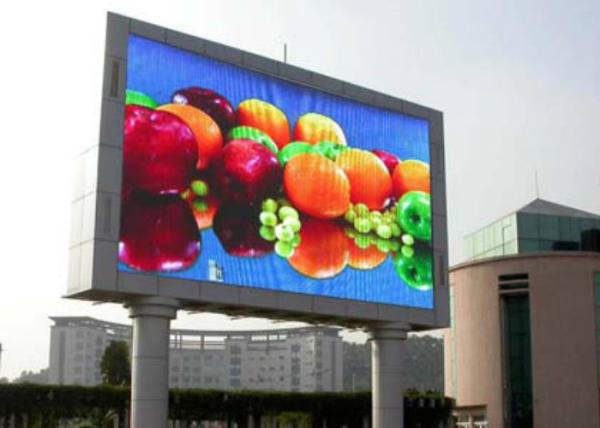

    Commercial Outdoor Full Color LED Display , big LED Screen Video Board P10 SMD3535

    Commercial Outdoor Full Color LED Display , big LED Screen Video Board P10 SMD3535


    Product Description

    Full color P4 P5 P6 P8 P10 smd outdoor led display


    ----- Feature -----

    • Rich colors: with three basic colors (red, green and blue) to form the unit boxes, making the electronic displays showing rich colors, high saturation, and high resolution, and also enabling them to show high frequency dynamic images.
    • High brightness: the products adopt super-high brightness LED, so that you can see clearly from a long distance even in strong sunshine.
    • Good effect: the products adopt non-linear calibration technology to realize clearer images with stronger feeling of layers.
    • High reliability: using distributed scanning technology and module design technology that make higher reliability and stability.
    • Diversified display modes: the products support multiple display modes.
    • Easy operation: the products adopt popular video playing software to facilitate system operations.
    • Convenient installation and maintenance of display modules
    • Energy saving and environment protection, antistatic, dust-proof, good heat dissipation, cost-effective.

    Technical Parameters


    DescriptionTechnical parameter
    Unit moduleModule size320*160mm
    Pixel pitch10mm
    Pixel density10,000dots/m2
    Pixel configuration1R1G1B
    Led specificationSMD3535
    Pixel resolutionW: 32dots*H: 16dots
    CabinetDimension960mm*960mm*150mm
    Quantities of module18pcs
    Power supply4pcs
    Thermal dischargeFan*2pcs
    Total weight45kg
    Best viewing distance>10m
    TemperatureStorage: -35degree~ +65degree
    Working: -30degree~ +60degree
    Thickness12cm can adjustable
    Remarks: cabinet size can changed, upon project need.
    PowerWorking voltageAC220V/110V± 10%
    Average power consumption400W
    Max. Power consumption≤ 800W/sqm
    Current≤ 20mA(single LED)
    Control systemCPUPentium4 or above
    Operating systemWIN98/2000/NT/XP
    Control methodSynchronization
    Main technical parameterDriving device1/2 or 1/4 scan
    Drive typeMBI5124
    Refresh frequency≥2000Hz
    Grey scale/colors256 levels of each color(R/G/B)/16.7M color
    Brightness of white balanceMore than 6000cd/sqm
    Brightness adjustment256 levels of each color(R/G/B)by software
    Operating ambient humidity10%--95%
    Video signalPAL/NTSC
    Control systemDVI display card+full color controller card
    MTBF≥ 5,000hours
    Life span≥ 100,000hours
    FlatnessTolerance of interpixel ≤ 0.3mm
    Tolerance of modules clearance≤ 0.6mm
    Power switchAutomatic switch
    Display mode1024*768
    Communication distanceNetwork calbe: 100m, Multi-model: 500m, Single-model fiber: 20km
    SoftwareLED Studio

    ----- Application -----

    • Commercial advertising LED display screen.
    • Stadium perimeter LED display screen.
    • Mobile trailer LED display screen for mobile media.
    • Shopping mall LED display screen for logo showing.
    • Bank & stock exchange LED display screen for rates showing.
    • Train & bus station LED display screen.
    • Air port LED display screen.
    • Telecommunication LED display screen system for information showing and instruction.

    ----- Trade -----


    MOQ: 1 sq.m. Outdoor LED Advertising Screen Price

    Payment: T/T or according to your requirements.

    Payment Term: FOB, EXW or according to your requirements.

    Packing: Wooden case, cartons, flight case or according to your requirements.

    Shipping: By air, by sea, by land, by express or according to your requirements.

    Delivery Time: 10~15 working days.
