outdoor led billboards Module Size 320x160mm P10 Iron / Alumium
Cabinet Full Color Big Screen LED TV , RGB Led Display Outdoor

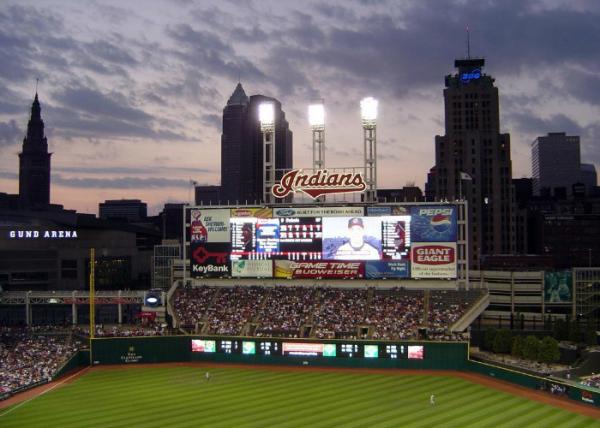

Suit for advertisement, stage, stadium, exhibition, TV-Show,
mansion video wall, shopping mall, banks, schools, bus station,
airport, gym, market, factories, monitoring centers, hospitals,
bars etc.
- 1. Video display for advertisement
- 2. Live broadcast for news, sport, concert…
- 3. Stage background
- 4. Information display for time, schedule, text
- 5. Dynamic display for logo, text, video
Techinical Specifications
| Item | Techinical Specifications |
| Pixel Pitch | 3mm | 4mm | 5mm | 6mm | 7.62mm | 8mm | 10mm |
| LED Configuration | SMD 3-in-1 | SMD 3-in-1 | SMD 3-in-1 | SMD 3-in-1 | SMD 3-in-1 | SMD 3-in-1 | SMD 3-in-1 |
Pixel Density
(pixels/sqm) | 111111 | 62500 | 40000 | 27777 | 17222 | 15625 | 10000 |
| Module Size | 192*96mm | 128*128mm | 160*160mm | 192*96mm | 244*122mm | 256*128mm | 320*160mm |
| Module Resilution | 64p*32pixel | 32*32pixel | 32*32pixel | 32*16pixel | 32*16pixel | 32*16pixel | 32*16pixel |
| Cabinet Size | 576*576mm | 768*768mm | 800*800mm | 960*960mm | 976*976mm | 1024*768mm | 960*960mm |
| Cabinet Resolution | 192*192pixels | 192*192pixels | 160*160pixels | 160*160pixels | 128*128pixels | 128*96pixels | 96*96pixels |
| Cabinet weight | <30kg | <30kg | <35kg | <35kg | <35kg | <40kg | <45kg |
| Brightness | 1800cd/sqm | 1800cd/sqm | 1800cd/sqm | 1800cd/sqm | 1500cd/sqm | 1500cd/sqm | 1500cd/sqm |
| Ave. Power | 240 W/sqm | 240 W/sqm | 200 W/sqm | 200 W/sqm | 200 W/sqm | 200 W/sqm | 180 W/sqm |
| Max. Power | 800W/sqm | 800W/sqm | 600W/sqm | 600W/sqm | 600W/sqm | 600W/sqm | 540W/sqm |
| Drive Mode | 1/16 scan | 1/8 scan | 1/8 scan | 1/8 scan | 1/8 scan | 1/8 scan | 1/8 scan |
| Input Voltage | AC220V/50HZ or AC110V/60HZ (±10%) |
| Output Voltage | 5V,40A |
| Viewing Angle | H:140°/V:140° |
| Frame rate | 50/60 Hz/sec |
| Refresh rate | ≥1200Hz |
| Protection Level | IP43 |
| Life-span | 100,000 hours |
| MTBF | 10,000 hours |
| Malfunction dot rate | < 0.0001 |
| Storage Temp/Humidity | -40~+60℃/10~80%RH |
| Operating Temp/Humidity | -20~+50℃/10~90%RH |
| Input Signal | RF,TV,RGB,S-VIDEO,PAL,DVI,HDMI,VGA,SDI,AVI,RGBHV,CVBS,etc |
| PC Operating System | Microsoft Windows 7, 8, 10, 98, 2000, XP and Vista |
Free Back Service Path, Excellent Display Effect
Adopt dual service of black kingkong series among core techniques,
free back service path for all kinds of installation surroundings.
Broadcast level color scale, color temperature and brightness
adjustable intelligentizedly, smooth color, high color ratio,
nature pictures.
IP65, Fast Installation and Maintenance
IP65 for modules, meets outdoor naked installtion requirements.
Design based on module, which saves installation and maintenance
cost, fast speed, maintenance with power on.
FAQ
How to protect power supply?
Electrical peaks can put more force on the electrical components
which will decrease life time .
it is wise to install a protection (voltage stabilizer) that can
control the peaks.
What is the life time for a LED screen?
The life time for the LED screen is basically over 100,000 hours,
but it depends how the client is taking care of his LED screen and how it is used. When a LED Screens´ life time gets to 100,000
hours, it means that the brightness of the LED lamps of the
LED screen is about 50% off as compared to the original brightness
depending on several factors that will enlarge a LED screen´s life
time or reach 100,000 hours
How about the quality guarantee of your products?
We have manufacturing indoor advertising small led display screen
for many years and can claim to produce a high quality that no
competitor has yet succeeded in producing at the price quoted. The
price we quoted leaves us with only the smallest of margins. They
are in fact lower than those of our competitors for goods of
similar quality.
What is your warranty?
2 years
Our Service:
1) Your inquiry related to our products or price will be replied in
24hrs
2) any your customized lightings we can help you to design and put
into product
3) Distributer ship are offered for your unique design and some our
current models
4) Protection of your sales area,ideas of design and all your
private information
5) Top Quality+Reasonable Price+Responsible After
Service=Successful & Win
Trade Terms:
1. Payment:T/T,30% deposits before production,70% balance to be
paid before deliverying
2. Shipping freight are quoted under your requests
3. Shipping port:shenzhen
