    High definition module Front Maintenance Led Display straight and curved board for avdertising

    Ask Lasest Price
    Brand Name : Kailite
    Model Number : P3.91
    Certification : CE,FCC,ROHS ISO9001
    Price : Negotiation
    Payment Terms : T/T, D/A, D/P, L/C, Western Union, MoneyGram
    Supply Ability : 8000sqm per month
    • Product Details
    • Company Profile

    High definition module Front Maintenance Led Display straight and curved board for avdertising


    High definition module Front Service LED Display straight and curved board for avdertising


    Product summary:

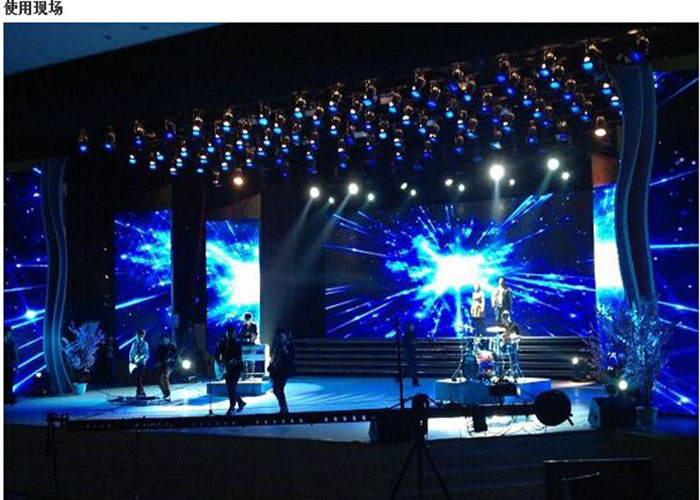

    • P3.91 screen in the stage performance of the special effects have been used to create the most incisive, magnificent, very modern scene to personally on the scene visual feast.
    • P3.91 rental led display adopt SMD2121 THREE IN ONE lamp . More clear and with high refresh .
    • P3.91 die casting cabinet can be 15 degree curve design
    • p3.91 led display Adopt Constant current driver chip and input buffer chip. It can display video animation, image text information, etc.. By LED control System

    Important note: It can be customized according to customer requirements on curve function


    Introduction of product features

    • Nation Star LED lamp with gold sealing and high quality plastic frame.
    • High quality die casting aluminum cabinet
    • Private PCB board design
    • The signal cable and power cable are designed by the standard of air connector.
    • Current back up power cable
    • Front service available

    THE MODULE PARAMETERS


    ModuleItemParameter


    Model NumberP3.91-16S
    Module size250mm*250mm
    Pixel pitch3.91 mm
    Pixels Density65536 /m2
    Pixel configuration1R1G1B
    Package mode

    SMD2121 3 IN 1


    Pixel resolution64dots(W)*64 dots(H)
    Max Power32W
    Module thickness13.07mm(no magnet)
    26.63mm(with magnet)
    Weight0.573kg
    Drive typeConstant drive
    Scan mode1/16
    Port typeHUB75-A
    Brightness of white balance

    ≥1200 CD/SQ.M



    THE CABINET / POWER SUPPLY SETTING PARAMETERS

    • Dimension 500mm*500mm

    • Module QTY: 4pc

    • Power supply: 5V/80A*1 pcs

    • Thermal discharge: fan 1pcs

    THE CABINET PARAMETERS



    LED Cabinet


    Dimension500mm*500mm
    Module quantity4pcs
    Power supply5V/40A*2 pcs
    Pixel per cabinet64 * 64
    Best viewing distance3M~20M
    Best viewing angle160°(W) 120°(H)
    Temperature

    storage:-35℃~+85

    working:-20℃~+50

    Relative humidity10%-95%
    Thickness

    85mm


    How to assemble the cabinet


    • Take out the cabinets
    • Put the cabinet together
    • Lock on
    • Connect power cables
    • Connect the cables
    • Finish

    Accessories

    • PC
    • Video processor
    • Hanging bar
    • Camera
