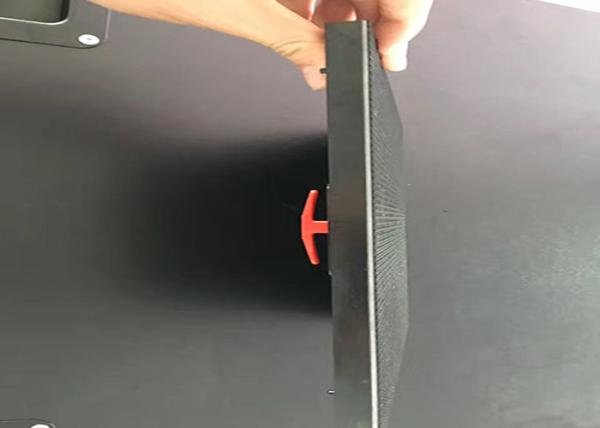

Light Weight 2121 SMD Led Screen Video / Indoor Led Display Board
Die Casting Aluminum
Quick details:
1. Excellent design should be easy to understood, the product will
talk for itself, cancelling the necessity of detailed explain.
2. Seamless stitching: With our special connector design it is easy
to reduce gaps while installing, creating a perfect display.
3. Adopt the latest anti-collision technology, make a more stable
cabinet during rental events, make a longer life span.
4. Customized design: bevel edge cabinet design according to
customer requirements.
5. Gapless connection: under 0.1 mm tolerance gap between cabinet
and module, under 0.2mm tolerance gap between cabinets.
Technical parameter:
| Pixel Pitch | 3.91mm |
| Pixel Density | 65536dots/sqm |
| Color Configuration | 1R1G1B |
| LED Package | SMD2121 |
| Module Size | 250mm x 250mm |
| Module Resolution | 64dots x 64dots |
| Drive Duty | 1/16 Scan |
| Standard Cabinet Size | 500mm x 500mm |
| Cabinet Weight | 8.5KG |
| Brightness | ≥1300 cd/sqm, adjustable by software |
| Viewing Distance | 4m-40m |
| Viewing Angle | H: 140°; V:120° |
| Refresh Rate | 2000HZ, adjustable by software |
| Frame Rate | 120frame/s |
| Grey Scale | 16.7M colors(Synchronized) |
| Color Temperature | R.G.B brightness 256 level adjustable |
| Power Input | AC110V/ 220V ±10%, 50HZ |
| Max Power Consumption | 800W/sqm |
| Ave. Power Consumption | 400W/sqm |
| Storage Temperature | -30℃~+70℃ |
| Working Temperature | -20℃~+50℃ |
| Blind Spot Rate | <1/10000 |
| MTBF | >10,000 Hours |
| Life Span | >100,000 Hours |
| Waterproof Level | IP43 |
| Operating Humidity | 10%~90% RH |
| Control Method | Synchronous, Asynchronous, 3G,WIFI,USB |
| PC Display Resolution | 1280x1024 |
| Control PC | With DVI Graphic card |
| Operating System | Win 98, Win2000, XP, Win7, Win8 |
| Video Signal Mode | RF, S-Video, RGB, RGBHV, YUV, YC etc |
Our Service :
1. Your inquiry related to our products or prices will be replied
in 24hrs.
2. Well-trained and experienced staffs to answer you’re your
inquires in fluent English.
3. OEM&ODM, any your customized screen we can help you to
design and put into product.
4. Distributor ship is offered for your unique design and some our
current models.
5. Protection of your sales area, ideas of design and all your
private information.
Application:
They are widely used in stage events,TV stations,concerts and expo events,conferences,live
bars etc.
FAQ:
Q1: How many years warranty of your products?
A1: We have a 2-year warranty for our led display screen, and
100,000 hours life span of the led lamps.
Q2: What about your pre-sale service and post-sale service?
A2:
Pre-sale service: We have a professional sales team and more than
10 years technical team who are willing to answer your questions.
We can offer a whole complete solution for your project.
Post-sale service: We can instruct you how to use, adjust the
screens, and change the boken modules with spare parts.
Also, we can send technicals to your country to solve problems.
Mostly, our led display will not have big problems within warranty
time.
Q3: Whats your payment term? How long it takes to delivery?
A3: We accept T/T. At least 30% deposit in advance, and the rest
70% before delivery.
Our average Production time is 15 days, after receiving the
deposit.
Q4: What's the control system?
A4: We use popular control system like Nova , Linsn.
Q5: How can you ensure the led display product quality?
A5: Our led display screen quality is our core competence.We have
each stardard process to make products strictly under quality
control.
Trade Info:
- Trade terms: CIF, FOB, EXW
- Payment term: T/T, West Union, Paypal, Cash
- Payment condition: 30% deposit, 70% balance before delivery
- Package: Netural carton, wooden box and flight case
- Shipping: By sea, by air and by express(DHL, UPS, Fedex etc)
